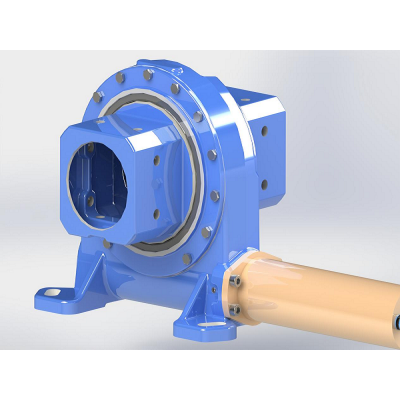

JV7S slewing reducer

Product features:

1. The product adopts a blind hole design and a skeleton oil seal structure with reliable sealing performance. The sealing area can avoid direct sunlight, effectively prevent dust and water and the protection level can reach IP65. It is suitable for outdoor use and can output with single or double flanges.

2. Using specialized machine tools and equipment to produce torus worm gears with multiple teeth in contact, transmitting greater torque and able to withstand greater axial, radial  and overturning forces.

3. The product design adopts universal dimensions both domestically and internationally making it convenient for later replacement.

Application scope:

Mainly used for the rotation of the pitch direction in solar tracking systems, it can also be applied to the rotation of certain special engineering machinery and industrial equipment.

The rotation of the pitch position of solar power generation systems such as flat single axis, inclined single axis, slot type power generation and concentrated solar power generation.

Industrial equipment such as automatic feeding machines.

Application advantages:

1. The vertical structure effectively simplifies the complex structural design of horizontal slewing drives for solar energy that require the installation of steel brackets, reducing the overall system cost.

2. The surface of the product has undergone secondary electrostatic powder spraying treatment in multiple processes, and the use of epoxy zinc rich primer and epoxy resin flour has greatly improved the corrosion and aging resistance of the product. The neutral salt spray test has lasted more than 1000 hours.

3. The raceway and gear tooth surface of the slewing support have undergone quenching treatment, resulting in high hardness and strong rigidity.

4. The service life can reach 25 years.

5. It has a self-locking function which improves the safety of use.

6. The transmission accuracy can reach 1 m radian (1mrad).

7. The product is developed based on the principle of maintenance free with minimal maintenance.

8. The load and overturning torque borne by the product is greater than that of similar products in the market.

9. The product has undergone high and low temperature tests and has strong temperature resistance.

10. Adopting national high-tech graphite synthetic lubricating grease, its lifespan and heat dissipation efficiency far exceed ordinary lubricating grease.

11. Adopting a torus worm design with multiple teeth in contact and carrying a large output torque.
