SE5-62-H-16R Are Hot Sale In Stock Now

SE5-62-H-16R Are Hot Sale In Stock Now

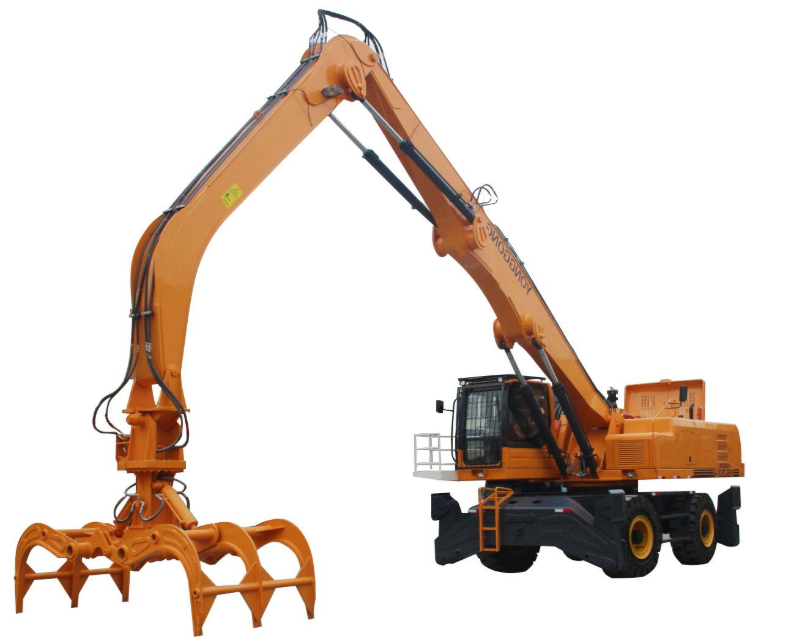

By adopting slewing bearing as its core component,slewing drive can bear axial force, radial force and tilting moment simultaneously. Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems.

  • Product Origin:

    China
  • Item NO.:

    5 inch slewing driv
  • Shipping Port:

    Shanghai
  • Color:

    Customer wants
  • Lead Time:

    From 40 days to 60 days
  • Payment:

    FOB
Product Detail

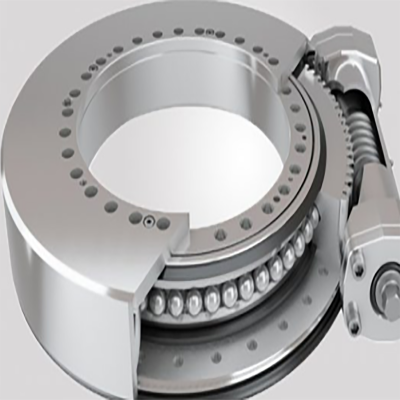

Se5 slewing bearing is an honorary product of Maanshan Jingwei.

the Data Model is se5

theOutput Torque is 600N.m

the Tilting Moment Torque is 1800 N.m

the Holding Torque is 5000 N.m

the Static Axial Load is 76KN

the Static Radial Load is 22.6KN

the Dynamic Axial Load is 13.8KN

the Dynamic Radial Loadis is 11.8KN

the Speed reducing ratio is 62:1

the Tracking Precision is 0.2°

the Self-lock is YES

the Weight is 12KG


The advantages of using turbine type slewing drive:

1. It can realize large transmission ratio, less transmission parts and compact structure.

2. More meshing teeth, higher coincidence degree, less impact load and smoother .

3. Self-locking function.

Se5 slewing bearing
