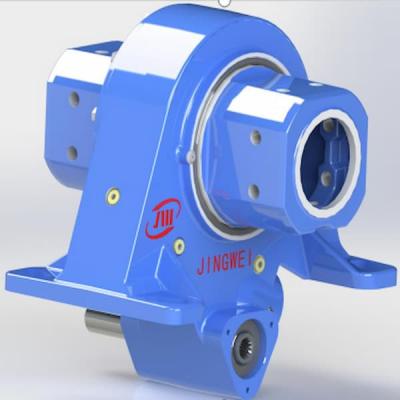

JL6 series reducer products have been mass-produced and sold to many countries around the world, especially the European market, which has brought great economic value to customers. The product is widely used in the field of photovoltaic power generation, used in flat single-axis, oblique single-axis, trough power generation, concentrating power generation system.
Using special machine tool equipment to produce toroidal worm, multi-tooth contact, transfer larger torque, can withstand greater axial force, radial force and tilting moment torque .At the same time, the seal is sealed with double oil seal, which can effectively dustproof and waterproof, and the protection grade reaches IP66.
Product Origin:
ChinaItem NO.:
6 inch slewing driveShipping Port:
ShangHaiColor:
CustomizableLead Time:
45DaysPayment:
FOBPrice:
$200/per pieceMarket Price:
$260Slewing Drive Capbility (6 Inch)
|
Slewing Drive Capbility (6 Inch) |
||
|
Ratio of Worm Gear |
357:1 |
|
|
Tracking Precision |
≤0.25° |
|
|
IP Class |
IP65 |
|
|
Temperature |
-30～+80℃ |
|
|
Holding torque -MY |
25000N.m |
|
|
Axial Static Load --FY |
Coa |
38 kN |
|
Axial Dynamic Load---FY |
Ca |
21 kN |
|
Radial Static Load -FX、FZ |
Cor |
70kN |
|
Radial Dynamic Load --FX、FZ |
Cr |
37 kN |
|
Tilting Moment Torque-MX、MZ |
Com |
16KN.m |
|
|
|
|
Slewing Drive Performance Data
Slewing Drive Performance Data
(JL6+24/70/90)
Nominal output speed 0.02 rpm
Nominal output torque 7.5 kN.m
Output torque
(JL6)
Output Speed
(JL6)
Motor Current
(24/70/90)
Nominal torque: 6KN,n
Continuous operation
Most operating conditions
0.02rpm
≈6A
Large torque:7.5KN.m
Continuous operation for 10 minute
It should not exceed 5%of the total
0.018rpm
≈8.8A
Planetary Reducer Motor
Planetary Reducer Motor
Performance Data
Rated Voltage
24 VDC
Rated Current
6A
Rated Speed
7 rpm
Rated Torque
90N.m
IP Class
IP66
Temperature
-40～+80℃
Application advantages:
1. The vertical structure effectively simplifies the complex structural design that the sun can use the horizontal rotary drive to install the bracket, and reduces the overall system cost.
2. IP66 protection slewing driver:The surface of the product is treated by multi-process electrostatic spraying twice,which greatly improves the corrosion resistance and anti-aging ability of the product. The neutral salt spray test is more than 1000 hours.
3. Gear tooth surface after quenching treatment, high hardness, strong rigidity.
4. The service life can reach 25 years.
5. With self-locking function, improve the safety of use.
6. High tracking precision slewing driver:Transmission accuracy up to 1 milliradian (1mrad).
7.Maintenance-free slewing driver: The product is developed based on maintenance-free purpose with minimal maintenance.
8. High load and tilting moment torque reducer:The load and tilting moment torque of the product are greater than that of similar products in the market.
9.Anti-high and low temperature solar reducer: After high and low temperature test, the product has strong temperature difference resistance.
10. Toroidal worm design, multi-tooth contact, bearing large output torque.
