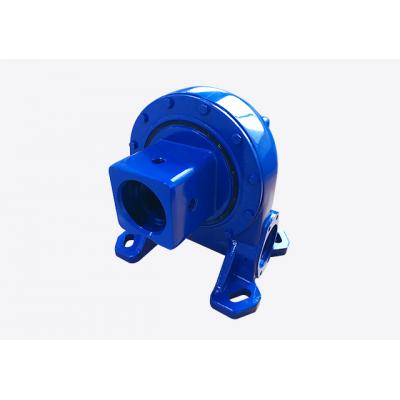

7 Inch Slewing Drive

7 Inch Slewing Drive

JV7 Series Products have been using in many projects for years, great response received.

  • Item NO.:

    JV7
  • Shipping Port:

    Shanghai
  • Color:

    Customer wants
  • Payment:

    FOB
Product Detail

JW have first class german team,

Customizing and individual,

Top manufacture machine and test equipments,

All products and parts are traceable and complete testing reports can be provided by JW,

JV7 Series products have been using in many projects for years, great response received.


Slew Drive Capability

Ratio of Worm Gear

52:1

Tracking Precision

0.2°

IP Class

IP65

Temperature

-30 ~ +70°C

Holding torque

34000N.m

Axial Static Load

48 kN

Axial Dynamic Load

26 kN

Radial Static Load

87 kN

Radial Dynamic Load

45.8 kN

Tilting Moment Torque

10.4KN.m



Planetary Reducer Motor Performance Data

Rated Voltag

24VDC

Rated Current

4.9A

Gear Ratio

661.22:1

IP Class

IP65

Temperature

-30~+70°C



       Slew Drive Performance Data

Nominal output speed

0.034 rpm

Nominal output torque

5 kN.m

output torque(JV7)

Output Speed (JV7)

Efficiency    (only JV7)

Motor Current (24/18/280)

Nominal torque: 5KN.m Continuous operation Most operating conditions

0.034 rpm

38%

4.9A

Large torque: 7KN.m    Continuous operation for 10 minute  It should not exceed 5% of the total

0.03 rpm

39%

6.4A

Limit torque: 9 KN.m   Continuous operation for 2 minute   Should be rare

0.025 rpm

40%

7.2A

Instantaneoustorque:11KN.m                                                                                                     Warning: There is no safety factor
