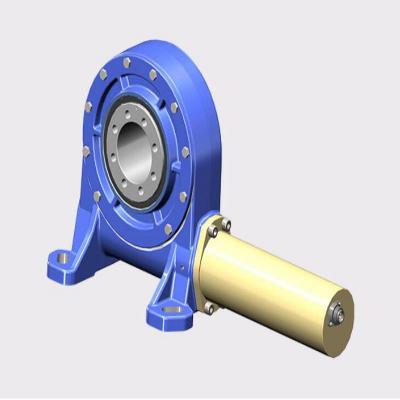

7 Inch Vertical Single Axis Worm Gear Slew Drive

7 Inch Vertical Single Axis Worm Gear Slew Drive

7 Inch Vertical Worm Gear Slew Drive is our main sales model, loved by European and American customers..

  • Product Origin:

    China
  • Item NO.:

    JV7D
  • Shipping Port:

    Shanghai/Nanjing
  • Color:

    Customer wants
  • Payment:

    FOB
Product Detail

Product Item:7 Inch Vertical Single Axis Worm Gear Slew Drive

This single axis worm gear slew drive having been using in many projects for years,great response received.


Capability:

  • Ratio of Worm Gear  52:1
  • Tracking Precision  <0.2°
  • IP Class  IP65
  • Temperature  +80°C
  • Holding torque 34000N.m
  • Axial Static Load  48 kN
  • Axial Dynamic Load 26 kN
  • Radial Static Load  87 kN
  • Radial Dynamic Load  45.8 kN
  • Tilting Moment Torque 10.4KN.m


Planetary Reducer Motor Performance Data:

  • Rated Voltage  24VDC
  • Rated Current  <5.65 A
  • Gear Ratio   622.68 :1
  • IP Class  IP65
  • Temperature  -30~+70°C


Slew Drive Performance Data:

  • Nominal output speed  0.029 rpm
  • Nominal output torque 5 kN.m
  • Instantaneous torque: 13KN.m

output torque(JV7D)


Output Speed (JV7D)


Efficiency (only JV7D)

Motor Current(24/15/300)


Nominal torque: 5KN.m

Continuous operation Most operating conditions

0.029rpm

= 38%

=4.5A

Large torque: 7KN.m Continuous operation for 10 minute Not more than5%of the total life

0.025rpm

39%


* A


Limit torque: lOKN.m

Should be rare

Continuous operation for 2 minute

0.02 rpm

= 40%

=6.8 A


Advantages of MA ANSHAN JING WEI SLEWING RING CO.,LTD.:

First class engineer team

Production and design according to customer requirements

Traceable and complete quality certification system, to provide customers with complete quality inspection report

The 7 inch worm gear slew drive has been tested in the actual commercial operation, and the operation is stable and reliable.




A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

Related Products
New Design Open Type Slewing Drive S9
New Design Open Type Slewing Drive S9

New design open type slewing drive S9 Compared with the fence type rotary drive, the cost of the open rotary drive is lower. It is widely used in the field of some cranes, and it is composed of open base, slewing bearing,

Slewing Gear Drive
Slewing Gear Drive

slewing gear drive A Worm Gear Slewing Drive system , also known as worm drive is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.

Slew Bearing Drive
Slew Bearing Drive

slew bearing drive Owing to our years of industry experience and precise knowledge of this domain, we are offering an outstanding assortment of Slewing Drive. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously....

Slewing Ring Drive
Slewing Ring Drive

slewing ring drive When a machine or accessory requires smooth and precise rotation control, shuangzheng has the perfect solution. Our range includes systems for mini-excavators, wheeled and tracked excavators, cranes, skylifts and winches. All our rotation drive gearmotors offer compact...

Slewing Drive
Slewing Drive with Motor

slewing drive with motor Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment...

reliable sealing performance​ slewing drive​
Vertical Horizontal Integrated Slewing Drive For Solar Energy Systerm

Vertical Horizontal Integrated Slewing Drive For Solar Energy Systerm adopts blind hole design and framework oil seal structure, the sealing performance is reliable, the sealing position can avoid direct sunlight, can effectively prevent dust and water, the protection level can reach IP65, suitable for outdoor use.This product is a blind hole design framework oil seal structure slewing drive and reliable sealing performance slewing drive.

7 inch Horizontal worm driven Slewing Drive
7 inch worm gear Slewing Drive

Stock And Fast Delivery 7 Inch Slew Drive For Wind Power Generation is widely used for solar tracker system. Here we can provide a cheap and high-quality solution: we can use single axle drive to realize the effect of two axle slewing drive, which is not only convenient, but also save money, and can achieve the same effect.

slewing drive 9 inch
High Quality Small Size 9 inch Slewing Drive For Solar Tracker

High Quality Small Size 9 inch Slewing Drive For Solar Tracker ,used in lifting, high altitude operations and other equipment, to improve the operating stability of the host machine and operating safety factor.
