7 inch adjustable slewing drive is suitable for all-terrain can reduce installation costs by 5%.This technology is mainly used for uneven and undulating terrain such as mountain slopes and hills. Compared with the construction of photovoltaic power stations in plain areas, photovoltaic power stations built in complex terrain conditions such as mountains and hills have characteristics such as uneven ground, different directions, local ditches, different scales, relatively scattered plots, block orientations, and inconsistent power generation. The strict mismatch of photovoltaic components poses higher requirements for the fine design and inverter technology of power stations.
Product Origin:
ChinaBrand:
Jingwei Slewing RingItem NO.:
Slewing drive for soShipping Port:
ShangHaiColor:
CustomizableLead Time:
45DaysPayment:
FOBMOQ:
5Slewing drive for solar tracker with 24V DC motor
This adjustable slewing drive can save 5% of installation costs and has a huge market prospect,which is suitable for all-terrain.

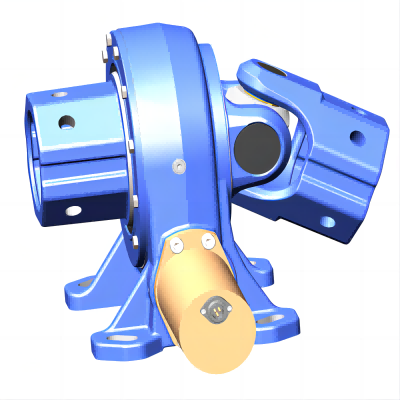

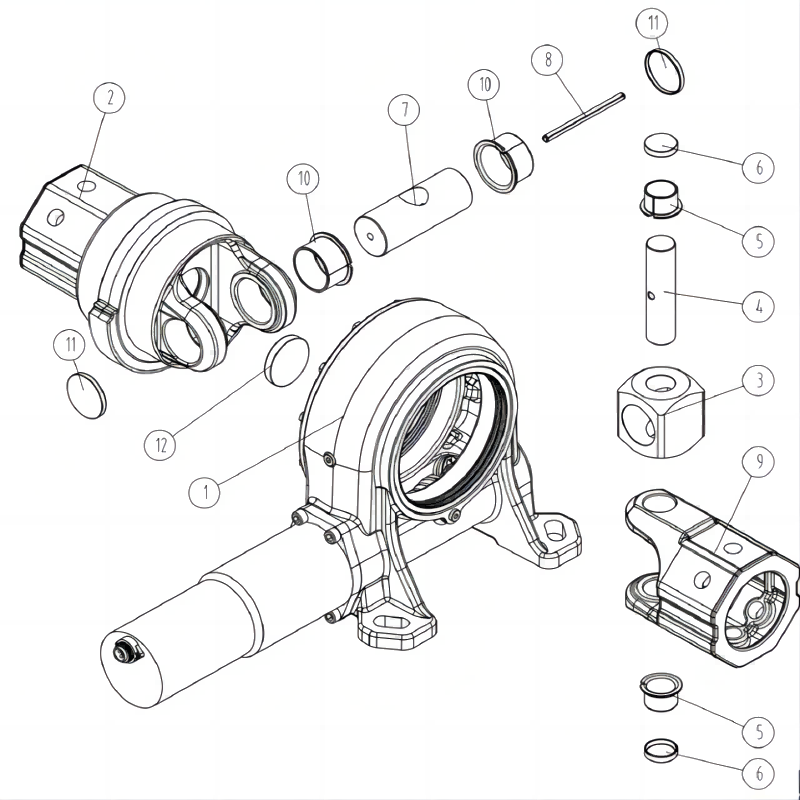

in 2023, we designed this reducer for all terrain tracking, which can adapt to complex terrain with undulations. It can also be used on ordinary flat terrain. By implementing a structure similar to a universal joint at both ends of the center shaft and worm gear, it can achieve stable operation with a maximum deviation of 24 °.
Slewing Drive Capability:High bearing capacity slewing drive
|
Slewing Drive Capability (7 Inch) |
||
|
Ratio of Worm Gear |
60:1 |
|
|
Tracking Precision |
≤0.2c |
|
|
IP Class |
IP65 |
|
|
Temperature |
-30～+70℃ |
|
|
Holding torque -MY |
34000N.m |
|
|
Axial Static Load --FY |
Coa |
48 kN |
|
Axial Dynamic Load---FY |
Ca |
26 kN |
|
Radial Static Load -FX、FZ |
Cor |
87 kN |
|
Radial Dynamic Load --FX、FZ |
Cr |
45.8 kN |
|
Tilting Moment Torque-MX、MZ |
Com |
10.4KN.m |
24V DC motor slewing drive: Planetary Reducer Motor
|
Planetary Reducer Motor |
Performance Data |
|
Rated Voltage |
24 VDC |
|
Rated Current |
8 A |
|
Rated Speed |
2.16 rpm |
|
Rated Torque |
320N.m |
|
IP Class |
IP65 |
|
Temperature |
-40～+60℃ |
|
Slewing Drive Performance Data
(JV7+24/22/320) |
||
|
Nominal output speed 0.036 rpm |
||
|
Nominal output torque 6 kN.m |
||
|
Output torque (JV7) |
Output Speed (JV7) |
Motor Current (24/22/320) |
|
Nominal torque: 6KN,n Continuous operation Most operating conditions |
0.036rpm |
≈6.8A |
|
Large torque:7.5KN.m Continuous operation for 10 minute It should not exceed 5%of the total |
0.035rpm |
≈8.2A |
|
Limit torque:9KN.m Continuous operation for 2 minute Should be rare |
0.034rpm |
≈9.5A |
Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
Categories
New design open type slewing drive S9 Compared with the fence type rotary drive, the cost of the open rotary drive is lower. It is widely used in the field of some cranes, and it is composed of open base, slewing bearing,
slewing gear drive A Worm Gear Slewing Drive system , also known as worm drive is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.
slew bearing drive Owing to our years of industry experience and precise knowledge of this domain, we are offering an outstanding assortment of Slewing Drive. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously....
slewing ring drive When a machine or accessory requires smooth and precise rotation control, shuangzheng has the perfect solution. Our range includes systems for mini-excavators, wheeled and tracked excavators, cranes, skylifts and winches. All our rotation drive gearmotors offer compact...
slewing drive with motor Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment...
Vertical Horizontal Integrated Slewing Drive For Solar Energy Systerm adopts blind hole design and framework oil seal structure, the sealing performance is reliable, the sealing position can avoid direct sunlight, can effectively prevent dust and water, the protection level can reach IP65, suitable for outdoor use.This product is a blind hole design framework oil seal structure slewing drive and reliable sealing performance slewing drive.
Stock And Fast Delivery 7 Inch Slew Drive For Wind Power Generation is widely used for solar tracker system. Here we can provide a cheap and high-quality solution: we can use single axle drive to realize the effect of two axle slewing drive, which is not only convenient, but also save money, and can achieve the same effect.
High Quality Small Size 9 inch Slewing Drive For Solar Tracker ,used in lifting, high altitude operations and other equipment, to improve the operating stability of the host machine and operating safety factor.
